FM-AM 11-Transistor RF-775

FM-AM 11-Transistor RF-775; Panasonic, (ID = 2356283) Radio FM-AM 11-Transistor RF-775; Panasonic, (ID = 2356284) Radio
FM-AM 11-Transistor RF-775; Panasonic, (ID = 2356285) Radio FM-AM 11-Transistor RF-775; Panasonic, (ID = 2356288) Radio
FM-AM 11-Transistor RF-775; Panasonic, (ID = 2356289) Radio FM-AM 11-Transistor RF-775; Panasonic, (ID = 2356290) Radio
FM-AM 11-Transistor RF-775; Panasonic, (ID = 2356291) Radio FM-AM 11-Transistor RF-775; Panasonic, (ID = 2356292) Radio
Use red slider bar for more.
FM-AM 11-Transistor RF-775; Panasonic, (ID = 2356283) Radio
Panasonic,: FM-AM 11-Transistor RF-775 [Radio] ID = 2356283 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM-AM 11-Transistor RF-775, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1978 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 117 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: FM-AM 11-Transistor RF-775 - Panasonic, Matsushita,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 235 x 150 x 75 mm / 9.3 x 5.9 x 3 inch
Notes

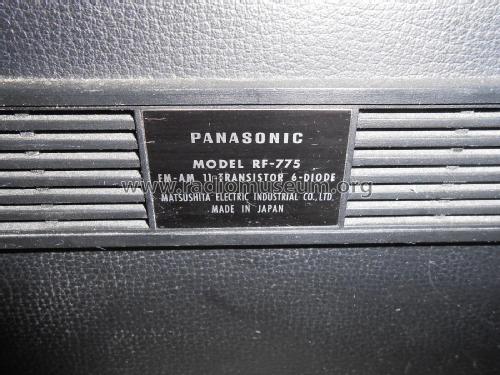

Panasonic Portable AC-Battery Operated FM-AM 11-Transistor 6-Diode Receiver Model RF-775.
Tuning Range: FM 87 - 108 MHz, AM 525 - 1605 kHz
Earphone Jack
Telescopic antenna, Carrying Handle



Net weight (2.2 lb = 1 kg) 1.350 kg / 2 lb 15.6 oz (2.974 lb)

Model page created by Franz Scharner. See "Data change" for further contributors.
