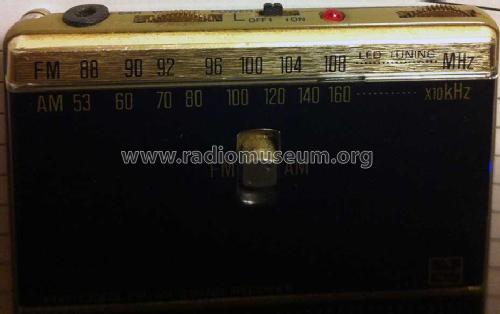

FM-AM 2-Band Receiver RF-033

FM-AM 2-Band Receiver RF-033; Panasonic, (ID = 2318756) Radio FM-AM 2-Band Receiver RF-033; Panasonic, (ID = 2318758) Radio
FM-AM 2-Band Receiver RF-033; Panasonic, (ID = 2318757) Radio FM-AM 2-Band Receiver RF-033; Panasonic, (ID = 2318759) Radio
FM-AM 2-Band Receiver RF-033; Panasonic, (ID = 948569) Radio FM-AM 2-Band Receiver RF-033; Panasonic, (ID = 490318) Radio
FM-AM 2-Band Receiver RF-033; Panasonic, (ID = 948570) Radio FM-AM 2-Band Receiver RF-033; Panasonic, (ID = 948571) Radio
FM-AM 2-Band Receiver RF-033; Panasonic, (ID = 948572) Radio FM-AM 2-Band Receiver RF-033; Panasonic, (ID = 948573) Radio
Use red slider bar for more.
FM-AM 2-Band Receiver RF-033; Panasonic, (ID = 2318756) Radio
Panasonic,: FM-AM 2-Band Receiver RF-033 [Radio] ID = 2318756 745x1217
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM-AM 2-Band Receiver RF-033, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1985 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: FM-AM 2-Band Receiver RF-033 - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 70 x 127 x 12 mm / 2.8 x 5 x 0.5 inch
Notes Panasonic RF-033, FM-AM 2-Band Receiver;
Earphone jack.
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Here you find 2583 models, 2335 with images and 505 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
