FM-AM 2- Band Receiver RF-2400

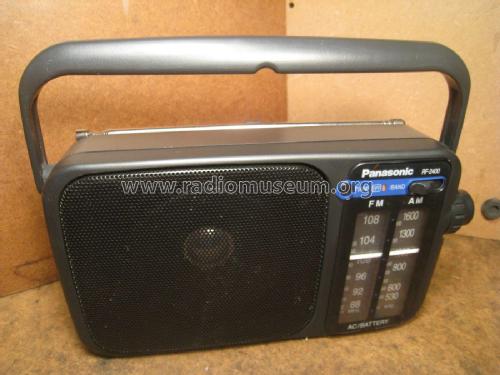

FM-AM 2- Band Receiver RF-2400; Panasonic, (ID = 2052510) Radio FM-AM 2- Band Receiver RF-2400; Panasonic, (ID = 2052511) Radio

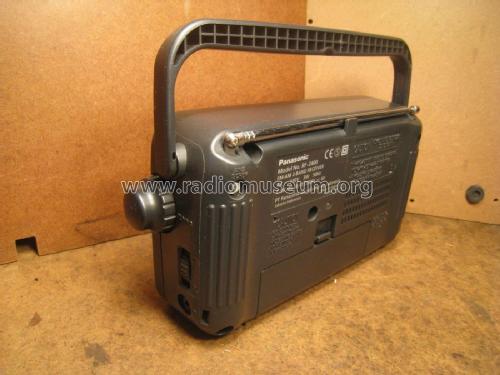

FM-AM 2- Band Receiver RF-2400; Panasonic, (ID = 2052513) Radio FM-AM 2- Band Receiver RF-2400; Panasonic, (ID = 2052512) Radio
FM-AM 2- Band Receiver RF-2400; Panasonic, (ID = 2052514) Radio FM-AM 2- Band Receiver RF-2400; Panasonic, (ID = 1358540) Radio
FM-AM 2- Band Receiver RF-2400; Panasonic, (ID = 1358541) Radio FM-AM 2- Band Receiver RF-2400; Panasonic, (ID = 1711014) Radio

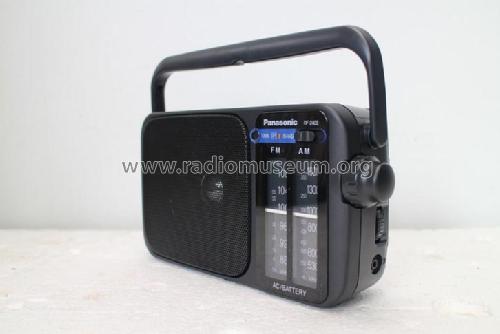

FM-AM 2- Band Receiver RF-2400; Panasonic, (ID = 1711015) Radio FM-AM 2- Band Receiver RF-2400; Panasonic, (ID = 1711016) Radio
Use red slider bar for more.
FM-AM 2- Band Receiver RF-2400; Panasonic, (ID = 2052510) Radio
Panasonic,: FM-AM 2- Band Receiver RF-2400 [Radio] ID = 2052510 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM-AM 2- Band Receiver RF-2400, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 2005 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 459/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 230/ 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.77 W (unknown quality)
from Radiomuseum.org Model: FM-AM 2- Band Receiver RF-2400 - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 234 x 122 x 82 mm / 9.2 x 4.8 x 3.2 inch
Notes

Analogtuner, Ohrhöreranschluß , Miniphone 3,5 mm, Teleskopantenne für FM, eingebauter Ferritstab für MW.

Made in Indonesia or China.

Net weight (2.2 lb = 1 kg) 0.670 kg / 1 lb 7.6 oz (1.476 lb)
Price in first year of sale 27.00 EURO
Source of data - - Manufacturers Literature

Model page created by Wolfgang Lill. See "Data change" for further contributors.
