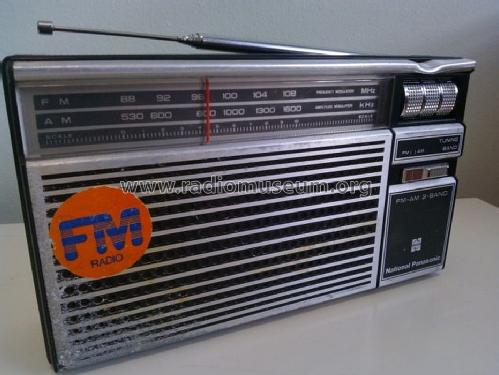

FM-AM 2-Band RF-524
Use red slider bar for more.
Panasonic,: FM-AM 2-Band RF-524 [Radio] ID = 1526513 933x803
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1980–1982 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 7: |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast (BC) and FM or UHF. |
| Details | |
| Power type and voltage | Dry Batteries / 2 x 1,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: FM-AM 2-Band RF-524 - Panasonic, Matsushita, |
| Material | Plastics (no bakelite or catalin) |
| Shape | Portable set > 8 inch (also usable without mains) |
| Notes | National-Panasonic RF-524, FM-AM 2-Band; Sold in Australia between 1980 & 1982 for $31.95 |
| Source of data | -- Collector info (Sammler) |
| Mentioned in | Mingay's Price Service (Aug 1980 to Aug 1982.) |
Model page created by a member from A. See "Data change" for further contributors.
