FM-AM 4-Band Portable Radio T-100Y

FM-AM 4-Band Portable Radio T-100Y; Panasonic, (ID = 531964) Radio

FM-AM 4-Band Portable Radio T-100Y; Panasonic, (ID = 531966) Radio

FM-AM 4-Band Portable Radio T-100Y; Panasonic, (ID = 531967) Radio

FM-AM 4-Band Portable Radio T-100Y; Panasonic, (ID = 531968) Radio
FM-AM 4-Band Portable Radio T-100Y; Panasonic, (ID = 2563433) Radio FM-AM 4-Band Portable Radio T-100Y; Panasonic, (ID = 2563434) Radio
FM-AM 4-Band Portable Radio T-100Y; Panasonic, (ID = 2563430) Radio FM-AM 4-Band Portable Radio T-100Y; Panasonic, (ID = 2563429) Radio
FM-AM 4-Band Portable Radio T-100Y; Panasonic, (ID = 2563431) Radio FM-AM 4-Band Portable Radio T-100Y; Panasonic, (ID = 2563432) Radio
FM-AM 4-Band Portable Radio T-100Y; Panasonic, (ID = 2563435) Radio FM-AM 4-Band Portable Radio T-100Y; Panasonic, (ID = 2563436) Radio
FM-AM 4-Band Portable Radio T-100Y; Panasonic, (ID = 620857) Radio FM-AM 4-Band Portable Radio T-100Y; Panasonic, (ID = 620858) Radio
Use red slider bar for more.
FM-AM 4-Band Portable Radio T-100Y; Panasonic, (ID = 2563433) Radio

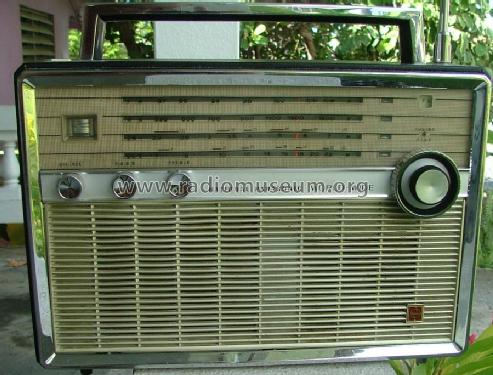

Panasonic,: FM-AM 4-Band Portable Radio T-100Y [Radio] ID = 2563433 1400x1596
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM-AM 4-Band Portable Radio T-100Y, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1968 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 12:
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage 9 & 1,5 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: FM-AM 4-Band Portable Radio T-100Y - Panasonic, Matsushita,
Shape Portable set > 8 inch (also usable without mains)
Notes National-Panasonic T-100Y, FM-AM 4-Band Portable Radio; Transistoren: 2SA241, 2SA71 (2*), 2SA70 (4*), 2SB173 (2*), 2SB175, 2SB324 (2*); Dioden: SC-15 (AFC), OA70 (2*), OA79 (2*); Heißleiter: Th MT080; Gegentaktendstufe mit Trafos
Source of data - - Manufacturers Literature

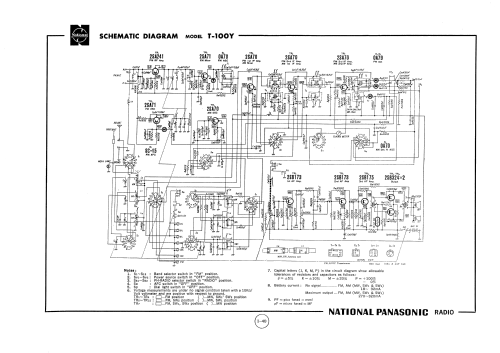

Literature/Schematics (1) -- Original-techn. papers.

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Here you find 2603 models, 2358 with images and 506 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
