FM-AM-FM Stereo Earphone Radio RF-H70

FM-AM-FM Stereo Earphone Radio RF-H70; Panasonic, (ID = 1628049) Radio
Use red slider bar for more.
FM-AM-FM Stereo Earphone Radio RF-H70; Panasonic, (ID = 1628049) Radio
Panasonic,: FM-AM-FM Stereo Earphone Radio RF-H70 [Radio] ID = 1628049 933x1182
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM-AM-FM Stereo Earphone Radio RF-H70, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:

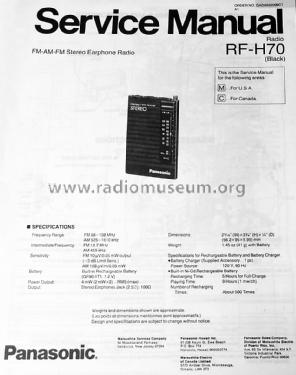

Panasonic Service Manual

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1986 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Storage and/or dry batteries / 1,2 Volt
Loudspeaker - For headphones or amp.
Power out 0.004 W (max.)
from Radiomuseum.org Model: FM-AM-FM Stereo Earphone Radio RF-H70 - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 56.2 x 95 x 5.95 mm / 2.2 x 3.7 x 0.2 inch
Notes

Panasonic Pocket FM-AM-FM Stereo Earphone Radio Model RF-H70 (Black).
Tuning Range: FM 88 - 108 MHz, AM 525 - 1610 kHz.
Earphone Jack
Built-in Rechargeable Battery (GF90-1T1, 1,2V)
Battery Charger 120V, 60Hz


Net weight (2.2 lb = 1 kg) 0.041 kg / 0 lb 1.4 oz (0.09 lb)
Mentioned in -- Original-techn. papers.

Model page created by Franz Scharner. See "Data change" for further contributors.
