FM Modulator CY-FM5EN

FM Modulator CY-FM5EN; Panasonic, (ID = 1525754) Commercial Tr

FM Modulator CY-FM5EN; Panasonic, (ID = 1525755) Commercial Tr
FM Modulator CY-FM5EN; Panasonic, (ID = 1525692) Commercial Tr FM Modulator CY-FM5EN; Panasonic, (ID = 1525693) Commercial Tr
FM Modulator CY-FM5EN; Panasonic, (ID = 1525694) Commercial Tr FM Modulator CY-FM5EN; Panasonic, (ID = 1525695) Commercial Tr
FM Modulator CY-FM5EN; Panasonic, (ID = 1525696) Commercial Tr FM Modulator CY-FM5EN; Panasonic, (ID = 1525697) Commercial Tr
FM Modulator CY-FM5EN; Panasonic, (ID = 1525698) Commercial Tr FM Modulator CY-FM5EN; Panasonic, (ID = 1525699) Commercial Tr
Use red slider bar for more.

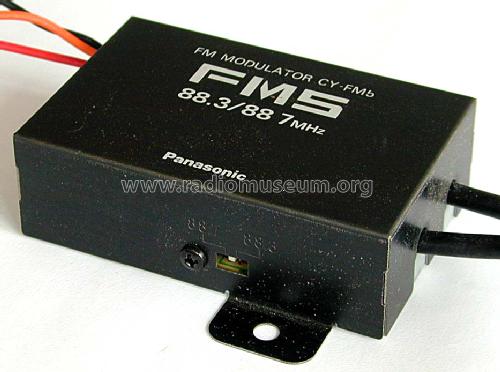

FM Modulator CY-FM5EN; Panasonic, (ID = 1525692) Commercial Tr
Panasonic,: FM Modulator CY-FM5EN [Commercial Tr] ID = 1525692 933x695
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM Modulator CY-FM5EN, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1990 ?? Category: Commercial Transmitter (TX not Transceiver)
Semiconductors (the count is only for transistors) 1: 2SA965 BA1404 HA178Lxx TA78DSxx
Main principle Transmitter
Wave bands FM Broadcast Band Only
Details Radio Control (+Remote Wire etc)
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: FM Modulator CY-FM5EN - Panasonic, Matsushita,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 87 x 29 x 55 mm / 3.4 x 1.1 x 2.2 inch
Notes

Das Gerät wird in die Antennenleitung eines Autoradios eingeschleift und kann wahlweise ein angeschlossenes NF-Signal auf 88,7 oder 88,3 MHz einspeisen oder direkt die Autoantenne anschließen.


Net weight (2.2 lb = 1 kg) 0.235 kg / 0 lb 8.3 oz (0.518 lb)
