• Country
• Brazil

• Manufacturer / Brand
• Panasonic do Brasil Ltda.; São Paulo

• Year
• 1990 ?

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 347405

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 60 Hz, 110; 220 V / D: 5 x 1.5 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 2.5 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

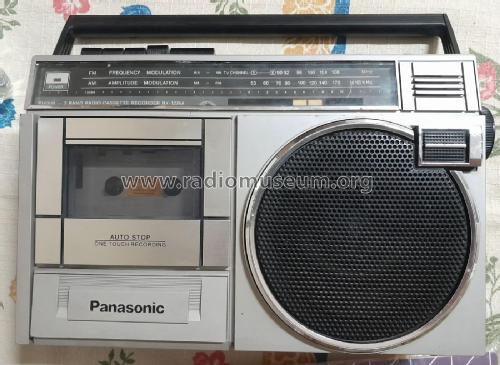

• Model: FM/AM - 2 Band Radio-Cassette-Recorder RX-1274A - Panasonic do Brasil Ltda.; São

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 336 x 219 x 123 mm / 13.2 x 8.6 x 4.8 inch

• Net weight (2.2 lb = 1 kg)
• 2.4 kg / 5 lb 4.6 oz (5.286 lb)

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Mauro De Souza. See "Data change" for further contributors.
