FM/AM Portable Radio RF-1401

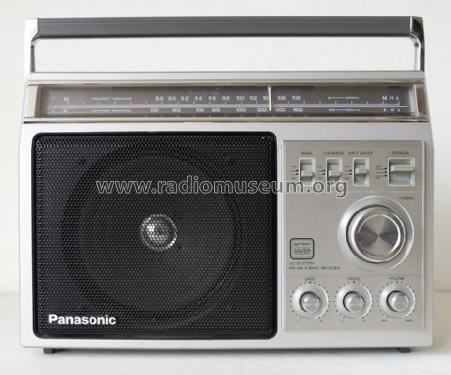

FM/AM Portable Radio RF-1401; Panasonic, (ID = 2052591) Radio FM/AM Portable Radio RF-1401; Panasonic, (ID = 1622561) Radio
FM/AM Portable Radio RF-1401; Panasonic, (ID = 1622562) Radio FM/AM Portable Radio RF-1401; Panasonic, (ID = 528003) Radio
Use red slider bar for more.
FM/AM Portable Radio RF-1401; Panasonic, (ID = 2052591) Radio
Panasonic,: FM/AM Portable Radio RF-1401 [Radio] ID = 2052591 1400x1197
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM/AM Portable Radio RF-1401, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1983 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 120 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: FM/AM Portable Radio RF-1401 - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 332 x 223 x 131 mm / 13.1 x 8.8 x 5.2 inch
Notes Panasonic RF-1401, FM/AM Portable Radio;
Earphones jack, 7 W power consumption.
Net weight (2.2 lb = 1 kg) 2.3 kg / 5 lb 1.1 oz (5.066 lb)
Source of data -- Original-techn. papers.
