FM/AM Radio Cassette Recorder RX-1650T

FM/AM Radio Cassette Recorder RX-1650T; Panasonic, (ID = 1422201) Radio FM/AM Radio Cassette Recorder RX-1650T; Panasonic, (ID = 1422202) Radio
Use red slider bar for more.
FM/AM Radio Cassette Recorder RX-1650T; Panasonic, (ID = 1422201) Radio
Panasonic,: FM/AM Radio Cassette Recorder RX-1650T [Radio] ID = 1422201 930x698
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM/AM Radio Cassette Recorder RX-1650T, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1981 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 14: 2SA838 2SA838 2SA838 2SD636 2SD636 2SD636 2SC2021 2SC2021 2SD636 2SA786 2SD636 2SD636 2SD636 2SA786
Main principle Superheterodyne (common)
Wave bands Broadcast plus 2 Short Wave bands.
Details Cassette-Recorder or -Player

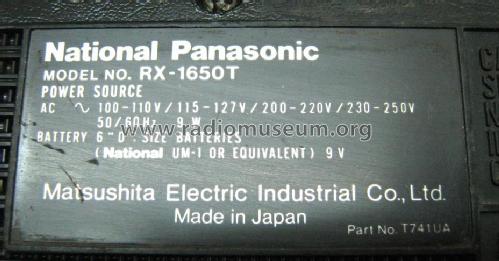

Power type and voltage Line / Batteries (any type) / 110-110; 115-127; 200-220; 230-250 / 6x 1,5 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: FM/AM Radio Cassette Recorder RX-1650T - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes

RX-1650-Series FM/AM Radio Cassette Recorder. 1 IC. Mechanical tape counter.

PCB Numbers: RUP1130XA, RUP1131ZB.

See also RX-1650W.

Model page created by Daniel Rosha. See "Data change" for further contributors.
