FM/AM Radio Microcassette Recorder RN-Z500

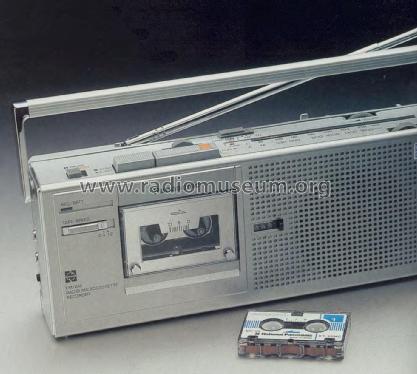

FM/AM Radio Microcassette Recorder RN-Z500; Panasonic, (ID = 1856772) Radio FM/AM Radio Microcassette Recorder RN-Z500; Panasonic, (ID = 1896872) Radio
FM/AM Radio Microcassette Recorder RN-Z500; Panasonic, (ID = 1856769) Radio FM/AM Radio Microcassette Recorder RN-Z500; Panasonic, (ID = 1856770) Radio
FM/AM Radio Microcassette Recorder RN-Z500; Panasonic, (ID = 1856773) Radio FM/AM Radio Microcassette Recorder RN-Z500; Panasonic, (ID = 1856774) Radio
FM/AM Radio Microcassette Recorder RN-Z500; Panasonic, (ID = 1896873) Radio FM/AM Radio Microcassette Recorder RN-Z500; Panasonic, (ID = 1896874) Radio
Use red slider bar for more.
FM/AM Radio Microcassette Recorder RN-Z500; Panasonic, (ID = 1856772) Radio
Panasonic,: FM/AM Radio Microcassette Recorder RN-Z500 [Radio] ID = 1856772 733x550
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM/AM Radio Microcassette Recorder RN-Z500, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1980 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Special Tape or Cassette-Format
Power type and voltage Batteries / addl. power jack / UM-3: 4 x 1,5 / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out 0.2 W (undistorted)
from Radiomuseum.org Model: FM/AM Radio Microcassette Recorder RN-Z500 - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 195 x 80 x 40 mm / 7.7 x 3.1 x 1.6 inch
Notes

Radio AM/FM con microregistatore a cassetta 2 velocità (1,2 - 2,4), counter, controllo tono mediante switch laterale (alti-bassi), microfono incomporato, presa per alimentazione 6 volt esterna, presa esterna per microfono ed auricolare.

Net weight (2.2 lb = 1 kg) 0.350 kg / 0 lb 12.3 oz (0.771 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
