FM/AM/FM Stereo 8 Track Player RS-836S

FM/AM/FM Stereo 8 Track Player RS-836S; Panasonic, (ID = 2419479) Radio FM/AM/FM Stereo 8 Track Player RS-836S; Panasonic, (ID = 2419481) Radio
FM/AM/FM Stereo 8 Track Player RS-836S; Panasonic, (ID = 2419483) Radio FM/AM/FM Stereo 8 Track Player RS-836S; Panasonic, (ID = 2419486) Radio
FM/AM/FM Stereo 8 Track Player RS-836S; Panasonic, (ID = 2419484) Radio FM/AM/FM Stereo 8 Track Player RS-836S; Panasonic, (ID = 2419485) Radio
FM/AM/FM Stereo 8 Track Player RS-836S; Panasonic, (ID = 2419480) Radio FM/AM/FM Stereo 8 Track Player RS-836S; Panasonic, (ID = 2419482) Radio
FM/AM/FM Stereo 8 Track Player RS-836S; Panasonic, (ID = 2419730) Radio
Use red slider bar for more.
FM/AM/FM Stereo 8 Track Player RS-836S; Panasonic, (ID = 2419479) Radio
Panasonic,: FM/AM/FM Stereo 8 Track Player RS-836S [Radio] ID = 2419479 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM/AM/FM Stereo 8 Track Player RS-836S, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
face avant

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1976 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Special Tape or Cassette-Format
Power type and voltage Line / Batteries (any type) / 120 / 6 x 1,5 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: FM/AM/FM Stereo 8 Track Player RS-836S - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 14 x 10 x 4 inch / 356 x 254 x 102 mm
Notes

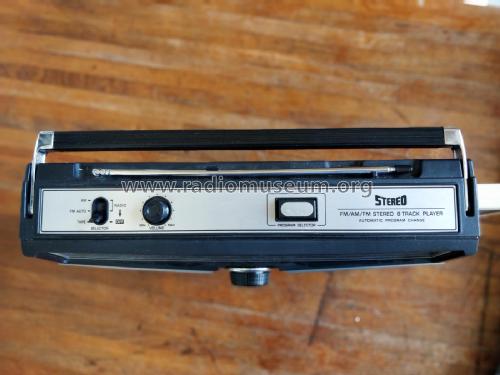

Panasonic AC/DC operated Portable AM-FM Stereo Radio with 8 Track Player Model RS-836S.
Automatoc Program Change.
Carrying Handle, Telescopic antenna..
Made in Japan.

Net weight (2.2 lb = 1 kg) 6 lb 1 oz (6.062 lb) / 2.752 kg

Model page created by Franz Scharner. See "Data change" for further contributors.
