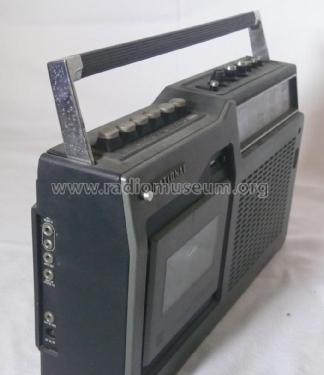

FM/MW/SW 3-Band Radio Cassette Recorder RQ-448
Use red slider bar for more.
Panasonic,: FM/MW/SW 3-Band Radio Cassette Recorder RQ-448 [Radio] ID = 1833442 1400x953
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1974 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 20: |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast, Short Wave plus FM or UHF. |
| Details | Cassette-Recorder or -Player |
| Power type and voltage | Line / Batteries (any type) / 100 / 4 x 1,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: FM/MW/SW 3-Band Radio Cassette Recorder RQ-448 - Panasonic, Matsushita, |
| Material | Plastics (no bakelite or catalin) |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 328 x 197 x 83 mm / 12.9 x 7.8 x 3.3 inch |
| Notes | National RQ-448 FM/MW/SW 3-Band Radio Cassette Recorder (Jap. domestic model); SW: 3.9 - 12 MHz. Storage box for a two transistor wireless FM microphone. Signal meter. Dial light. Earphones jack. MPX out. Aux Stereo in, DC in. Note the different country versions. |
| Net weight (2.2 lb = 1 kg) | 3.6 kg / 7 lb 14.9 oz (7.93 lb) |
| Mentioned in | -- Schematic |
Model page created by a member from A. See "Data change" for further contributors.
