Minivision TC-L1 D

Minivision TC-L1 D; Panasonic, (ID = 414254) Television Minivision TC-L1 D; Panasonic, (ID = 414260) Television
Minivision TC-L1 D; Panasonic, (ID = 414256) Television Minivision TC-L1 D; Panasonic, (ID = 414258) Television
Minivision TC-L1 D; Panasonic, (ID = 414259) Television Minivision TC-L1 D; Panasonic, (ID = 414261) Television
Minivision TC-L1 D; Panasonic, (ID = 2004681) Television Minivision TC-L1 D; Panasonic, (ID = 2004682) Television
Minivision TC-L1 D; Panasonic, (ID = 2004684) Television
Use red slider bar for more.
Minivision TC-L1 D; Panasonic, (ID = 414254) Television
Panasonic,: Minivision TC-L1 D [Television] ID = 414254 933x622
Select picture or schematic to display from thumbnails on the right and click for download.
For model Minivision TC-L1 D, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:

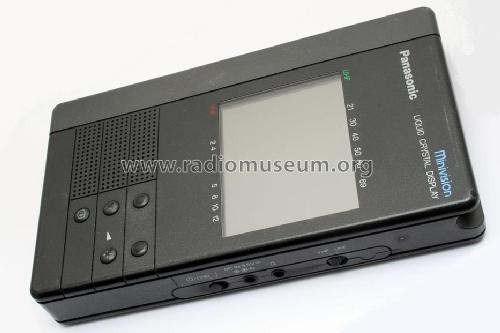

Panasonic Minivision Colour TV Model TC-L1D, FN 9511817, Draufsicht

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1988 Category: Television Receiver (TV) or Monitor
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage and/or dry batteries / 9,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 cm = 1 inch
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: Minivision TC-L1 D - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 91 x 154 x 23 mm / 3.6 x 6.1 x 0.9 inch
Notes LCD-Taschen-Farbfernsehgerät
Stromversorgung durch Trockenbatterien/Akkus im Gerät oder mittels Netz- bzw. Autoanschlussadapter
Empfangsbereiche: VHF-Kanäle 2-12; UHF-Kanäle 21-69
Bildschirmdiagonale 7,5 cm; 102.672 Bildpunkte
Eines der ersten TV-Geräte mit LCD-Bildschirm am Markt; hergestellt in Japan.
Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Price in first year of sale 975.00 DM

Model page created by Knut Rothstein. See "Data change" for further contributors.
