• Year
  • 1975–1978
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 318442

 Technical Specifications

  • Tuned circuits
  • 8 AM circuit(s)     8 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery / 90-109; 110-125; 220-250 / D: 4 x 1.5 / DC: 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

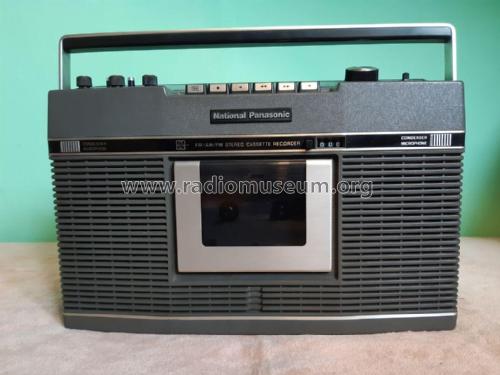

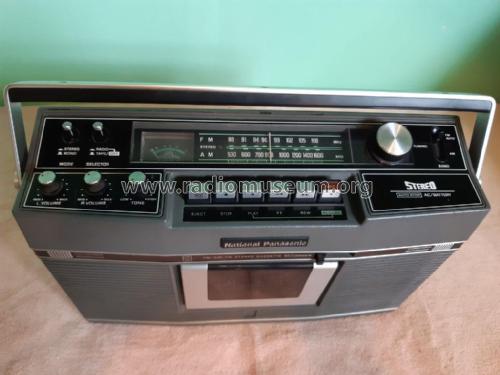

  • Model: FM/AM/FM Stereo Cassette Recorder RS-460S - Panasonic, Matsushita,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 349 x 251 x 120 mm / 13.7 x 9.9 x 4.7 inch
  • Notes
  • National Model RS460S

    Stereo radio cassette with 2 watts RMS output. Two built-in condenser microphones. FM and AM radio with stereo eye. Automatic recording level, sound monitor switch. Recording level and battery check meter; 3-digit tape counter; AC/DC operation; mike mixing; jacks for stereo headphones; microphones; ext. speakers. 3 way power. (FROM MINGAY'S PRICE SERVICE)

    See also 240 volt 50 Hz version.

  • Net weight (2.2 lb = 1 kg)
  • 3.3 kg / 7 lb 4.3 oz (7.269 lb)
  • Mentioned in
  • Feb 1976 to Feb 1978.
  • Author
  • Model page created by Milosav Zivojinovic. See "Data change" for further contributors.
