National All-Transistor Portable Radiogram HG-800 (TRG-165)

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1961/1962
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 259609

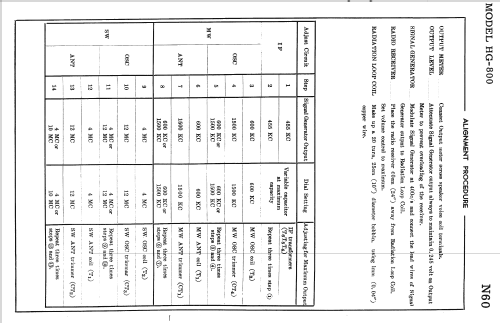

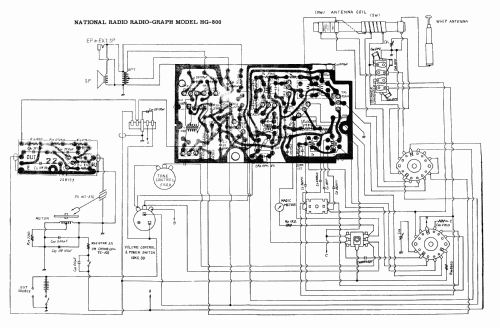

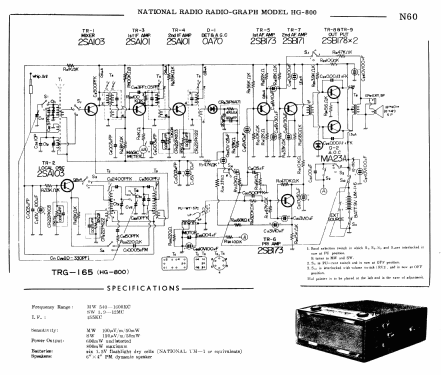

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Batteries / addl. power jack / D: 6 x 1,5 / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 0.6 W (0.8 W max.)
  • from Radiomuseum.org
  • Model: National All-Transistor Portable Radiogram HG-800 - Panasonic, Matsushita,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 11.8 x 5.2 x 14.6 inch / 300 x 132 x 371 mm
  • Notes

  • National Model HG800 Portable Radiogram

    A two-band, nine-transistor, four-speed portable radiogram (Pickup type: PU-WT-57C) powered by six 1.5V flashlight cells. Speaker, 6" x 4" PM Dynamic. Frequency range M/W 540-1600 kC/s (kHz), S/W 3.9 - 12 MC/s (MHz). Built-in Ferrite rod antenna and telescopic whip antenna. Earphone jack for earphone listening. Magic meter for tuning indicator and for battery life indicator. External source jack for external power supply is provided. (MINGAY'S PRICE SERVICE)

    This model sold in Australia during 1961 & 1962 for £71./8/-. Price includes batteries.

  • Author
  • Model page created by Daniel Rosha. See "Data change" for further contributors.
