National 3 Band 8 Transistor GT-373

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1962 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 259567

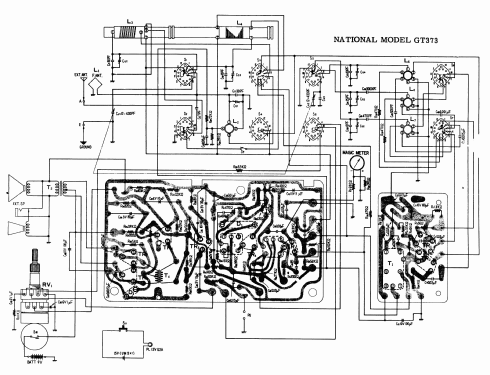

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Dry Batteries / 6 x 1,5 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 0.5 W (0.8 W max.)
  • from Radiomuseum.org
  • Model: National 3 Band 8 Transistor GT-373 - Panasonic, Matsushita,
  • Shape
  • Tablemodel, low profile (big size).
  • Notes

  • Frequency Range:

        MW: 535 - 1605 kHz
        SW1: 3.2 - 8 MHz.
        SW2: 8.5 - 22 MHz.

    Two loudspeakers: 5" and 4".
    Frame antenna, external antenna and earth terminals.
    Magic meter.
    PU jack, external speaker jack.
    Phono/Band selection switch, volume control, ON/OFF switch & tone control knob.
    Local/DX setting for strong signals of MW band.



  • Mentioned in
  • -- Schematic
  • Author
  • Model page created by Daniel Rosha. See "Data change" for further contributors.
