National Automatic Reverse RS-790S

National Automatic Reverse RS-790S; Panasonic, (ID = 1951329) R-Player

National Automatic Reverse RS-790S; Panasonic, (ID = 1951330) R-Player
National Automatic Reverse RS-790S; Panasonic, (ID = 1940422) R-Player National Automatic Reverse RS-790S; Panasonic, (ID = 1950859) R-Player
National Automatic Reverse RS-790S; Panasonic, (ID = 1950863) R-Player
Use red slider bar for more.

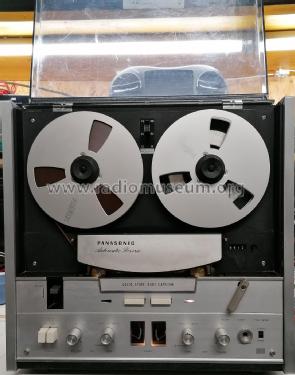

National Automatic Reverse RS-790S; Panasonic, (ID = 1940422) R-Player
Panasonic,: National Automatic Reverse RS-790S [R-Player] ID = 1940422 1056x961
Select picture or schematic to display from thumbnails on the right and click for download.
For model National Automatic Reverse RS-790S, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Picture from Bozhidar Mladenov

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1970 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 14:
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 100; 115; 125; 200; 230; 250 Volt
Loudspeaker 2 Loudspeakers
Power out 8 W (unknown quality)
from Radiomuseum.org Model: National Automatic Reverse RS-790S - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 430 x 420 x 220 mm / 16.9 x 16.5 x 8.7 inch
Notes

Automatic Reverse, dual capstan, 3 speeds - 4,75,  9,53,  19,05;  4 heads.

See also the different shaped model Panasonic RS-790AD.

Net weight (2.2 lb = 1 kg) 20 kg / 44 lb 0.8 oz (44.053 lb)
Mentioned in -- Original-techn. papers.

Model page created by Bozhidar Mladenov. See "Data change" for further contributors.
