National Color TV TC-83S

National Color TV TC-83S; Panasonic, (ID = 1762638) Television National Color TV TC-83S; Panasonic, (ID = 1762639) Television
National Color TV TC-83S; Panasonic, (ID = 1762640) Television National Color TV TC-83S; Panasonic, (ID = 1762641) Television

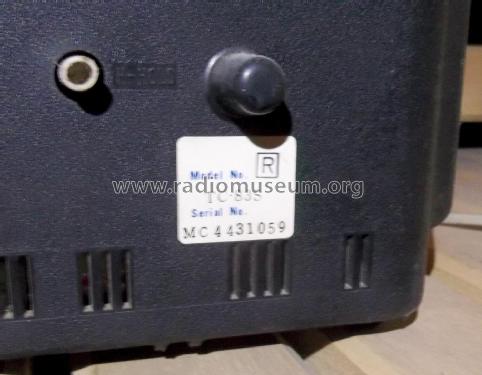

National Color TV TC-83S; Panasonic, (ID = 1762642) Television National Color TV TC-83S; Panasonic, (ID = 1762643) Television
National Color TV TC-83S; Panasonic, (ID = 1762644) Television
Use red slider bar for more.

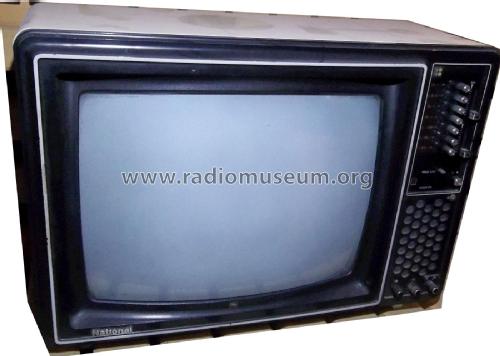

National Color TV TC-83S; Panasonic, (ID = 1762638) Television
Panasonic,: National Color TV TC-83S [Television] ID = 1762638 1400x998
Select picture or schematic to display from thumbnails on the right and click for download.
For model National Color TV TC-83S, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1974 ?? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: 470ESB22
Semiconductors (the count is only for transistors) Semiconductors present. AN331 AN234
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: National Color TV TC-83S - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Tablemodel, low profile (big size).
Notes

47 cm PAL color TV with CCIR B/G standard 7 presets VHF/UHF tuner.

135 W power consumption.

Made in Japan.

Model page created by a member from A. See "Data change" for further contributors.
