National Panasonic 2 Band 8 Transistor T-801H

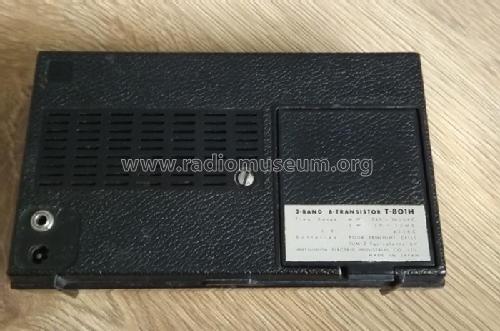

National Panasonic 2 Band 8 Transistor T-801H; Panasonic, (ID = 2262540) Radio National Panasonic 2 Band 8 Transistor T-801H; Panasonic, (ID = 2262541) Radio
Use red slider bar for more.
National Panasonic 2 Band 8 Transistor T-801H; Panasonic, (ID = 2262540) Radio
Panasonic,: National Panasonic 2 Band 8 Transistor T-801H [Radio] ID = 2262540 700x464
Select picture or schematic to display from thumbnails on the right and click for download.
For model National Panasonic 2 Band 8 Transistor T-801H, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Image taken from polish online auction portal .allegro.pl. Auction number: 7361094949

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2SA103 2SA103 2SA101 2SA101 2SB173 2SB173 2SB176 2SB176 OA70 MA23
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Batteries / addl. power jack / AA: 4 x 1,5 / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.2 W (0.3 W max.)
from Radiomuseum.org Model: National Panasonic 2 Band 8 Transistor T-801H - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 6.3 x 3.5 x 1.5 inch / 160 x 89 x 38 mm
Notes

Frequency Range:
MW: 540 - 1600 kHz
SW: 3.9 - 12 MHz
See also T-801J with different SW band reception.





Mentioned in -- Schematic

Model page created by Daniel Rosha. See "Data change" for further contributors.
