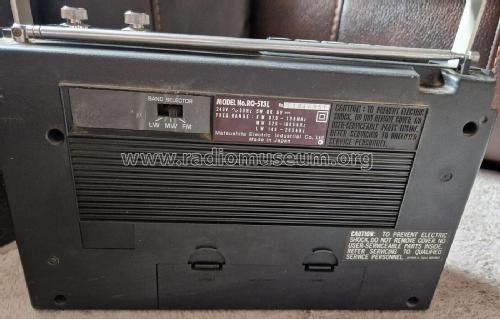

National Panasonic Radio Cassette RQ-513L

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1978 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 346227

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery / 240 / 6 / 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: National Panasonic Radio Cassette RQ-513L - Panasonic, Matsushita,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

  • Portable 3-Band Radio Receiver Cassette Player Model Panasonic RQ-513L

    Tuning Range:
    AM 525 - 1605 kHz
    LW 145 - 285 kHz
    FM 87.5 - 108 MHz

    Front loading Standard Cassette Player with Auto Stop System

    Monitor On/OFF
    Carrying Handle
    Telescopic antenna
    Mic In
    ext. Speaker 8 Ohms
    DC In 6V


    Power consumption 240 VAC 5 Watts


  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
