• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 250311

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / AAA: 2 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm

• Power out
• 0.07 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

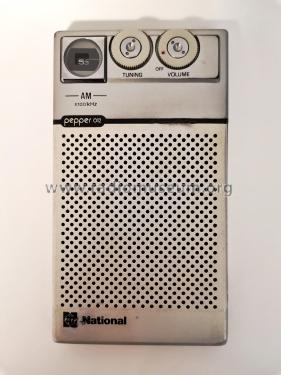

• Model: National Pepper R-012 - Panasonic, Matsushita,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 71 x 127 x 12.7 mm / 2.8 x 5 x 0.5 inch

• Notes

• National Pocket AM Radio Model Pepper 012 R-012.

• Net weight (2.2 lb = 1 kg)
• 0.130 kg / 0 lb 4.6 oz (0.286 lb)

• Price in first year of sale
• 7,800.00 ¥

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
