National R-108N

National R-108N; Panasonic, (ID = 1705080) Radio

National R-108N; Panasonic, (ID = 1705081) Radio
Use red slider bar for more.
National R-108N; Panasonic, (ID = 1705080) Radio

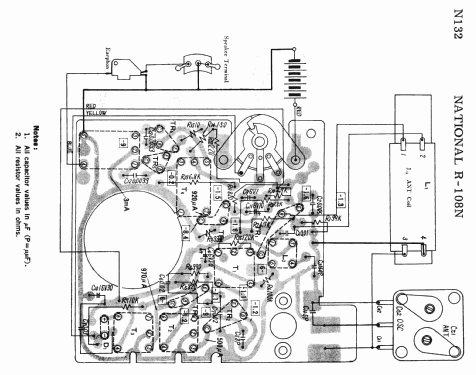

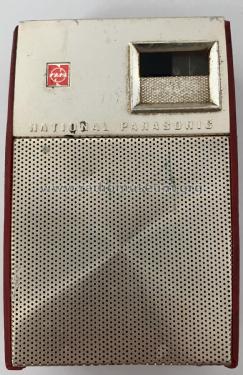

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2SA102 2SA101 2SA101 2SB171 2SB172 2SB172 OA90
Main principle Superheterodyne (common); 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: National R-108N - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes

See also Panasonic R-108.

Model page created by Daniel Rosha. See "Data change" for further contributors.
