National RQ-706S

National RQ-706S; Panasonic, (ID = 2469678) R-Player National RQ-706S; Panasonic, (ID = 2634106) R-Player
National RQ-706S; Panasonic, (ID = 2634104) R-Player National RQ-706S; Panasonic, (ID = 2634103) R-Player

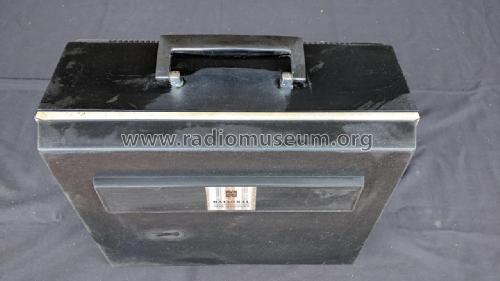

National RQ-706S; Panasonic, (ID = 2634105) R-Player
Use red slider bar for more.
National RQ-706S; Panasonic, (ID = 2469678) R-Player
Panasonic,: National RQ-706S [R-Player] ID = 2469678 1400x1215
Select picture or schematic to display from thumbnails on the right and click for download.
For model National RQ-706S, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Digitally enhanced image from Mingay's. Taken from original document.
Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1967–1969 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 7: 2SB345 2SB175 2SB175 2SB175 2SB324 2SB324 2SB324 OA70 OA70 OA70
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 100/115/125/200/230/250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (max.)
from Model: National RQ-706S - Panasonic, Matsushita,
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 14.75 x 11.25 x 6.25 inch / 375 x 286 x 159 mm

National RQ-706S Tape Recorder

  Features: three speeds (1⅞, 3¾ and 7½ ips). AC operation. VU meters. "Easy matic" three-way recording switch. Frequency range 100-15000 c/s (Hz) at 7½ ips, 50-15000 c/s (Hz) at 3¾ ips, 50-4000 c/s (Hz) at 1⅞ ips. Two 6" x 4" PM dynamic speakers; 7" reels. Special "mood selector" tone control. Jacks for two microphones and extension speaker. Complete with dynamic microphone and stand, radio cord, 7" reel tape, 7" empty reel and splicing tape.

This model sold in Australia between 1967 and 1969 for $159.00

Net weight (2.2 lb = 1 kg) 17 lb 8 oz (17.5 lb) / 7.945 kg
Mentioned in Mingay's Price Service (Aug 1967 to Aug 1969.)
Literature/Schematics (1) JR Tape Recorder Handbook, Page N26. (Also at KevinChant com)

Model page created by Martin Kent. See "Data change" for further contributors.
