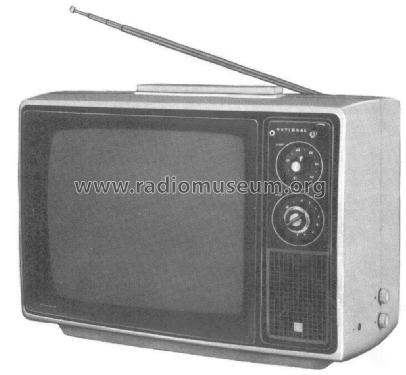

National TR714ESN

National TR714ESN; Panasonic, (ID = 1977312) Television

National TR714ESN; Panasonic, (ID = 1977313) Television

National TR714ESN; Panasonic, (ID = 1977314) Television

National TR714ESN; Panasonic, (ID = 1977315) Television

National TR714ESN; Panasonic, (ID = 1977316) Television

National TR714ESN; Panasonic, (ID = 1977317) Television

National TR714ESN; Panasonic, (ID = 1977318) Television

National TR714ESN; Panasonic, (ID = 1977319) Television

National TR714ESN; Panasonic, (ID = 1977320) Television
National TR714ESN; Panasonic, (ID = 1606702) Television National TR714ESN; Panasonic, (ID = 1606704) Television
National TR714ESN; Panasonic, (ID = 1606705) Television National TR714ESN; Panasonic, (ID = 1977305) Television
Use red slider bar for more.
National TR714ESN; Panasonic, (ID = 1606702) Television
Panasonic,: National TR714ESN [Television] ID = 1606702 634x476
Select picture or schematic to display from thumbnails on the right and click for download.
For model National TR714ESN, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1980 ?? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Line / Batteries (any type) / 220/12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out 1.5 W (1.6 W max.)
from Radiomuseum.org Model: National TR714ESN - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 425 x 315 x 310 mm / 16.7 x 12.4 x 12.2 inch
Net weight (2.2 lb = 1 kg) 9.5 kg / 20 lb 14.8 oz (20.925 lb)
Price in first year of sale 11'000.00 pte

Model page created by Manuel Albano Neves. See "Data change" for further contributors.
