Omnivision VHS Recorder PV-V4022

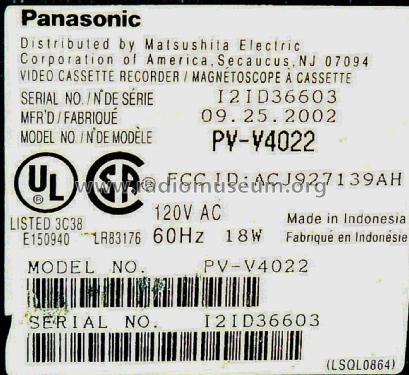

Omnivision VHS Recorder PV-V4022; Panasonic, (ID = 2026932) R-Player Omnivision VHS Recorder PV-V4022; Panasonic, (ID = 2026933) R-Player

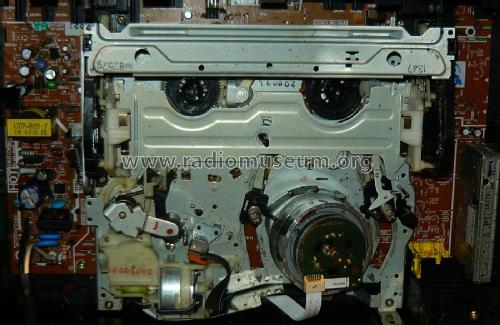

Omnivision VHS Recorder PV-V4022; Panasonic, (ID = 2026934) R-Player Omnivision VHS Recorder PV-V4022; Panasonic, (ID = 2033503) R-Player
Use red slider bar for more.
Omnivision VHS Recorder PV-V4022; Panasonic, (ID = 2026932) R-Player
Panasonic,: Omnivision VHS Recorder PV-V4022 [R-Player] ID = 2026932 1400x713
Select picture or schematic to display from thumbnails on the right and click for download.
For model Omnivision VHS Recorder PV-V4022, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 2002 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Video-Taperecorder/-Player
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Omnivision VHS Recorder PV-V4022 - Panasonic, Matsushita,
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 360 x 100 x 250 mm / 14.2 x 3.9 x 9.8 inch
Notes
Video Signal System  R/P|NTSC (color)
Videostandard: VHS
Tuner equipped: Yes HF Output: Yes
Timer: Yes Color: Yes
Insert-Cut: Yes Controllable by Editing-System: No
Timebas Corrector: n.a. RGB Video In/Out: No
Composite (FBAS) Video In/Out: Yes Component Video In/Out: No
S-Video In/Out: No Signal to Noise Video: __dB
Horizontal Resol. black/white: ___l. Horizontal Resolution Color: ___l.
Dropout compensator: n.a. Wow and Flutter lin. audiotrack: __%
No. of Audiochannels linear track: 1 No. of Audiochannels helical track:

_

Signal to Noise linear Audio track: __dB Signal to Noise helical Audio track: __ dB
Audio Out Asym Audio In Asym
crosstalk lin. Audio track __dB crosstalk heli. Audio track __dB

Audio Frequency Response : __Hz to _____Hz
Remote Control: IR|Cable|by Edit Control System|No


Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)

Model page created by Michael Gnaedig-Fischer. See "Data change" for further contributors.
