PanaColor TH11-S7(S)
Use red slider bar for more.
Panasonic,: PanaColor TH11-S7 [Television] ID = 1003748 449x460
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1979 | Category: Television Receiver (TV) or Monitor | ||||
| Valves / Tubes | 1: | ||||
|---|---|---|---|---|---|
| Semiconductors (the count is only for transistors) | Semiconductors present. |
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | VHF incl. FM and/or UHF (see notes for details) |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 100 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: PanaColor TH11-S7 - Panasonic, Matsushita, |
| Material | Plastics (no bakelite or catalin) |
| Shape | Tablemodel, high profile (upright - NOT Cathedral nor decorative). |

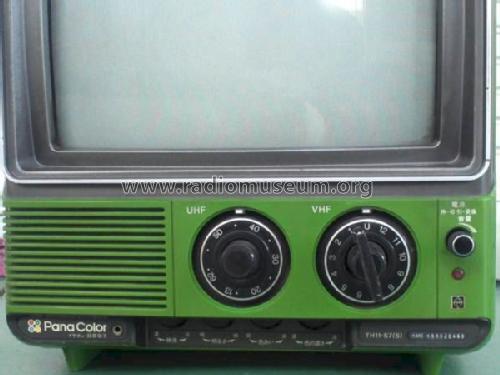

| Notes | National PanaColor TH11-S7(S); NTSC TV, Japanese standard VHF/UHF tuner, earphones jack, green colored. |
Model page created by a member from A. See "Data change" for further contributors.
