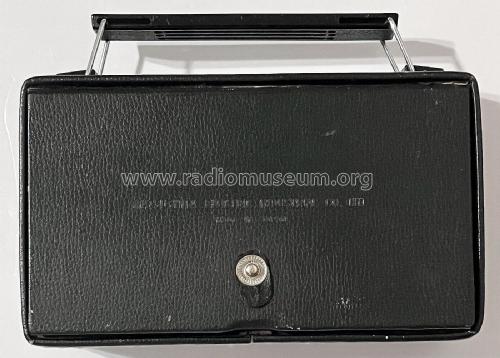

Panasonic 7 Transistor Super 7 R-1157

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1965 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 258195

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Batteries / addl. power jack / AA: 4 x 1,5 / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.2 W (0.3 W max.)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Panasonic 7 Transistor Super 7 R-1157 - Panasonic, Matsushita,
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 6.5 x 3.5 x 2 inch / 165 x 89 x 51 mm
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Daniel Rosha. See "Data change" for further contributors.
