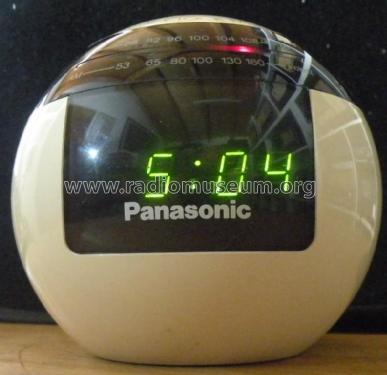

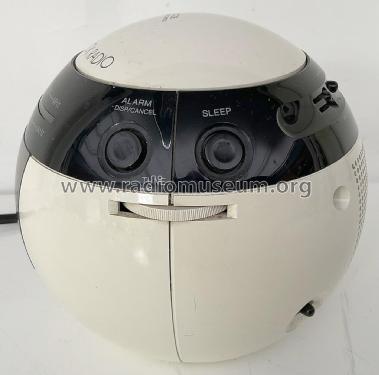

Panasonic Digital Clock Radio RC-70
Use red slider bar for more.
Panasonic,: Panasonic Digital Clock Radio RC-70 [Radio] ID = 2285904 622x466
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1980 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast (BC) and FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 50 Hz; 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Panasonic Digital Clock Radio RC-70 - Panasonic, Matsushita, |
| Material | Plastics (no bakelite or catalin) |
| Shape | Tablemodel with Clock ((Alarm-) Clock Radio). |
Model page created by Aldo Andreani. See "Data change" for further contributors.
