Panasonic RX-1280S

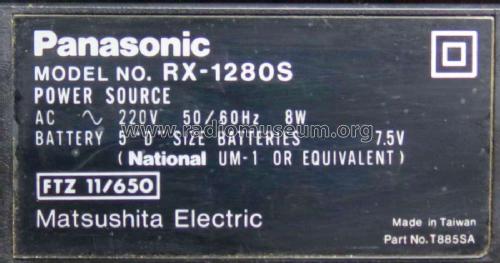

Panasonic RX-1280S; Panasonic, (ID = 2155085) Radio Panasonic RX-1280S; Panasonic, (ID = 2155086) Radio
Panasonic RX-1280S; Panasonic, (ID = 2155087) Radio Panasonic RX-1280S; Panasonic, (ID = 2155090) Radio

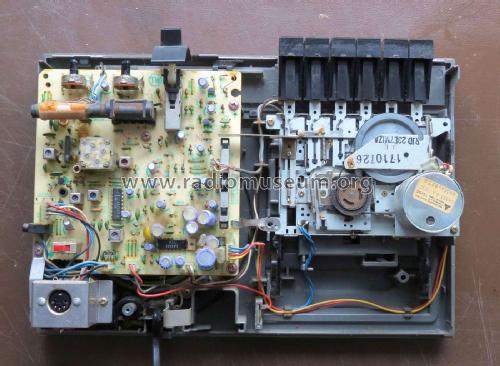

Panasonic RX-1280S; Panasonic, (ID = 2155088) Radio Panasonic RX-1280S; Panasonic, (ID = 2155089) Radio
Use red slider bar for more.
Panasonic RX-1280S; Panasonic, (ID = 2155085) Radio
Panasonic,: Panasonic RX-1280S [Radio] ID = 2155085 1400x1658
Select picture or schematic to display from thumbnails on the right and click for download.
For model Panasonic RX-1280S, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1982 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / D: 5 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Panasonic RX-1280S - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 315 x 220 x 95 mm / 12.4 x 8.7 x 3.7 inch
Notes

Siehe auch Panasonic RX-1280A für 240V Netzspannung.

Made in Taiwan.

Net weight (2.2 lb = 1 kg) 2.275 kg / 5 lb 0.2 oz (5.011 lb)
