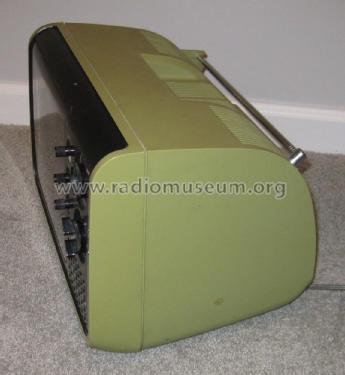

Panasonic - Solid State TV TR-729U
Use red slider bar for more.
Panasonic,: Panasonic - Solid State TV TR-729U [Television] ID = 1851966 1340x921
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1978 ?? | Category: Television Receiver (TV) or Monitor | ||||
| Valves / Tubes | 1: | ||||
|---|---|---|---|---|---|
| Semiconductors (the count is only for transistors) | Semiconductors present. |
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | VHF incl. FM and/or UHF (see notes for details) |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 120 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Panasonic - Solid State TV TR-729U - Panasonic, Matsushita, |
| Material | Plastics (no bakelite or catalin) |
| Shape | Tablemodel, with any shape - general. |
| Dimensions (WHD) | 14 x 10 x 9.5 inch / 356 x 254 x 241 mm |
| Notes | ~9" b/w TV. US FCC standard VHF/UHF tuner. 38W power consumption. Made in Japan. |
Model page created by a member from A. See "Data change" for further contributors.
