Quintrix CT-218 NMX-L1

Quintrix CT-218 NMX-L1; Panasonic, (ID = 1051000) Television Quintrix CT-218 NMX-L1; Panasonic, (ID = 1051001) Television
Quintrix CT-218 NMX-L1; Panasonic, (ID = 1051002) Television Quintrix CT-218 NMX-L1; Panasonic, (ID = 1051003) Television
Quintrix CT-218 NMX-L1; Panasonic, (ID = 1051004) Television Quintrix CT-218 NMX-L1; Panasonic, (ID = 1051005) Television
Quintrix CT-218 NMX-L1; Panasonic, (ID = 1051006) Television
Use red slider bar for more.
Quintrix CT-218 NMX-L1; Panasonic, (ID = 1051000) Television
Panasonic,: Quintrix CT-218 NMX-L1 [Television] ID = 1051000 764x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Quintrix CT-218 NMX-L1, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Ebay user pinktimemachine 250880207081

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1978 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Quintrix CT-218 NMX-L1 - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 18 x 14.5 x 13.25 inch / 457 x 368 x 337 mm
Notes Panasonic Quintrix CT-218, Ch= NMX-L1;

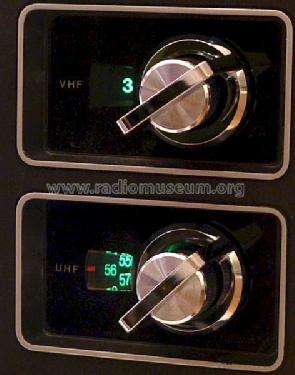

12" NTSC Color TV with US FCC standard VHF turret & UHF dial tuner, assembled in Korea with Japanese parts, May 1978 manufacturing date proven.

Model page created by a member from A. See "Data change" for further contributors.
