National Panasonic 3 Band 8 Transistor R-308

• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1966 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 138337

• Picture
• Schematics

Previous Next

Previous Next

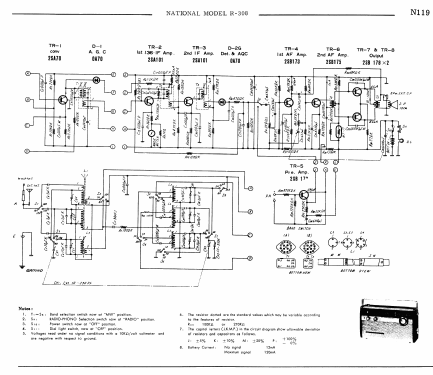

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SA70 2SA101 2SA101 2SB173 2SB173 2SB175 2SB178 2SB178 OA70 OA70

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / D: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: National Panasonic 3 Band 8 Transistor R-308 - Panasonic, Matsushita,

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• National Panasonic R-308

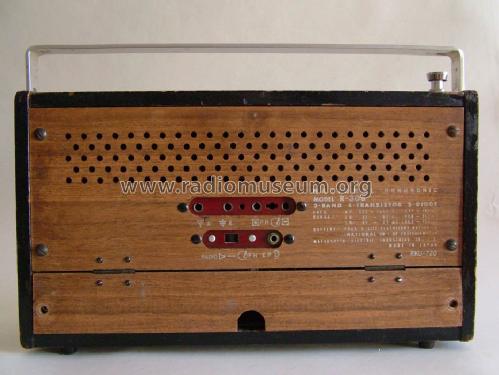

  Portable radio with telescopic antenna, coarse / fine tuning, phono/radio switch, dial light, Magic Meter.

  Wavebands:
  MW: 525 - 1605 kHz
  SW1: 3.2 - 8.5 MHz
  SW2: 8.5 - 22 MHz

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.

• Other Models

• Here you find 2987 models, 2764 with images and 620 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Panasonic, Matsushita, National ナショナル (also tubes); Osaka
