R-1014

R-1014; Panasonic, (ID = 2050829) Radio R-1014; Panasonic, (ID = 364613) Radio
R-1014; Panasonic, (ID = 1447914) Radio R-1014; Panasonic, (ID = 364614) Radio
R-1014; Panasonic, (ID = 262760) Radio R-1014; Panasonic, (ID = 1447915) Radio
R-1014; Panasonic, (ID = 1447918) Radio R-1014; Panasonic, (ID = 1447920) Radio
R-1014; Panasonic, (ID = 1447921) Radio R-1014; Panasonic, (ID = 1447922) Radio
Use red slider bar for more.
R-1014; Panasonic, (ID = 2050829) Radio

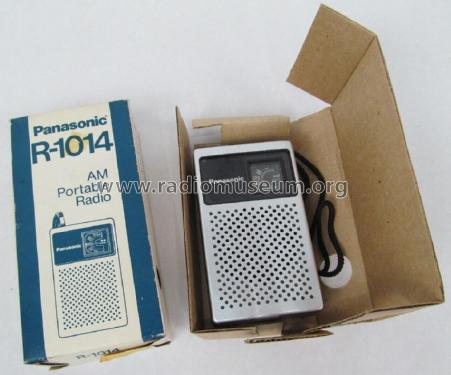

Panasonic,: R-1014 [Radio] ID = 2050829 1063x1433
Select picture or schematic to display from thumbnails on the right and click for download.
For model R-1014, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2SC829 2SA101 2SC829 2SB175 2SB176 2SB176
Main principle Superheterodyne (common)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / AA: 2 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: R-1014 - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 63 x 112 x 32 mm / 2.5 x 4.4 x 1.3 inch
Notes 1 Diode
Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Mentioned in Bunis, Transistor Radios - 2nd ed., p191
