National Panasonic All Transistor R-103

National Panasonic All Transistor R-103; Panasonic, (ID = 1554227) Radio

National Panasonic All Transistor R-103; Panasonic, (ID = 1555032) Radio
National Panasonic All Transistor R-103; Panasonic, (ID = 1761450) Radio National Panasonic All Transistor R-103; Panasonic, (ID = 783119) Radio
National Panasonic All Transistor R-103; Panasonic, (ID = 783120) Radio National Panasonic All Transistor R-103; Panasonic, (ID = 783121) Radio
National Panasonic All Transistor R-103; Panasonic, (ID = 783122) Radio National Panasonic All Transistor R-103; Panasonic, (ID = 1230837) Radio
National Panasonic All Transistor R-103; Panasonic, (ID = 1518671) Radio National Panasonic All Transistor R-103; Panasonic, (ID = 1518672) Radio
National Panasonic All Transistor R-103; Panasonic, (ID = 1628449) Radio National Panasonic All Transistor R-103; Panasonic, (ID = 1761451) Radio
Use red slider bar for more.
National Panasonic All Transistor R-103; Panasonic, (ID = 1761450) Radio

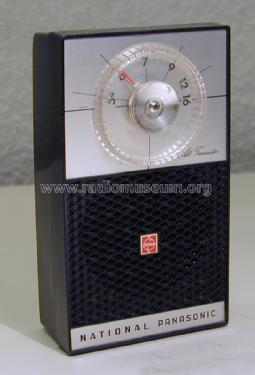

Panasonic,: National Panasonic All Transistor R-103 [Radio] ID = 1761450 815x1198
Select picture or schematic to display from thumbnails on the right and click for download.
For model National Panasonic All Transistor R-103, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1963–1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2SA102 2SA101 2SA101 2SB171 2SB172 2SB172 OA90
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out 0.1 W (0.15 W max.)
from Radiomuseum.org Model: National Panasonic All Transistor R-103 - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 2.625 x 4.375 x 1.375 inch / 67 x 111 x 35 mm
Notes

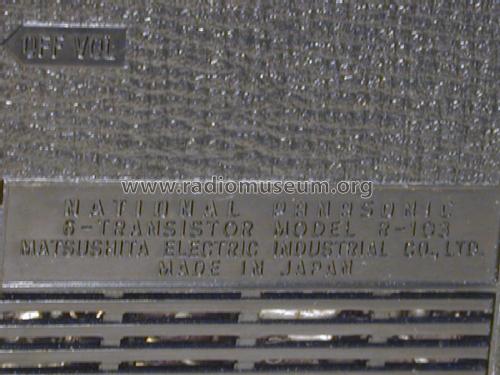

National Model R103

   Six transistor, one diode, one-band pocket radio. Drift type transistors on frequency converter circuit and I.F. amplifying circuit for good sensitivity. Jack for earphone. Available in plastic cabinet with leather case.
   Specifications: frequency range 540-1600 kC/s (kHz). Power output 150 mW maximum. Speaker 2.1" PM dynamic (Speaker Z = 100 ohms). Battery National Type 006P (Standard 9 volt).

This model sold in Australia between 1963 & 1966 for £19/19/- ($39.90 after 14/2/1966). Weight & price includes battery.

Net weight (2.2 lb = 1 kg) 0 lb 8 oz (0.5 lb) / 0.227 kg
Mentioned in Mingay's Radio Electrical Weekly Price Service (REWPS) (Feb 1964 to Feb 1966.)
Literature/Schematics (1) J.R. Publications Transistor Radio Service Handbook (Group C1, 1964, Page N91. [Also at KevinChant com])

Model page created by Wolfgang Möller. See "Data change" for further contributors.
