All Transistor R-1076

All Transistor R-1076; Panasonic, (ID = 2351875) Radio All Transistor R-1076; Panasonic, (ID = 2351879) Radio
All Transistor R-1076; Panasonic, (ID = 2351877) Radio All Transistor R-1076; Panasonic, (ID = 2351878) Radio
All Transistor R-1076; Panasonic, (ID = 2351876) Radio All Transistor R-1076; Panasonic, (ID = 2351880) Radio
All Transistor R-1076; Panasonic, (ID = 2351882) Radio All Transistor R-1076; Panasonic, (ID = 262754) Radio
All Transistor R-1076; Panasonic, (ID = 671849) Radio All Transistor R-1076; Panasonic, (ID = 671850) Radio
Use red slider bar for more.
All Transistor R-1076; Panasonic, (ID = 2351875) Radio
Panasonic,: All Transistor R-1076 [Radio] ID = 2351875 1400x1866
Select picture or schematic to display from thumbnails on the right and click for download.
For model All Transistor R-1076, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1965 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2SA102 2SA101 2SA101 2SB171 2SB175 2SB172 2SB172
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
Power out
from Radiomuseum.org Model: All Transistor R-1076 - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 2.25 x 3.83 x 1 inch / 57 x 97 x 25 mm
Notes

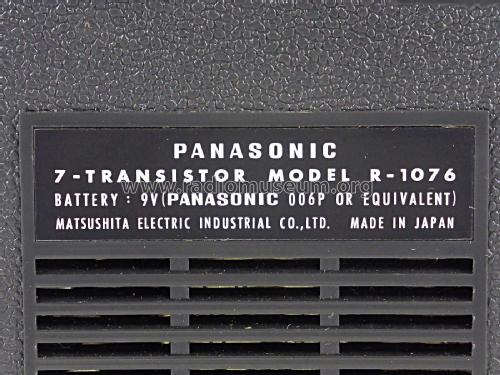

Panasonic 1-Band 7-Transistor Portable AM Radio Model R-1076.
Tuning Range AM 525 - 1605 kHz.
Made in Japan.

Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Collectors' prices
Mentioned in Panasonic Service Manual No.: 388
Literature/Schematics (1) Photofact TSM Transistor Radio Series SAMS (TSM-76 (October, 1966))
