For model R-1329, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Panasonic Service Manual

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1975 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2SA102 2SA101 2SA101 2SB173 2SB175 2SB172 2SB172
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
Power out 0.12 W (0.2 W max.)
from Radiomuseum.org Model: R-1329 - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 1.5 x 4 x 2.75 inch / 38 x 102 x 70 mm
Notes

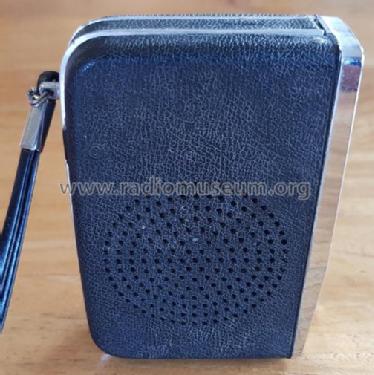

Panasonic Pocketable Radio Model R-1329.
Tuning Range 525 - 1605 kHz.
Red body color known.

Net weight (2.2 lb = 1 kg) 0 lb 8 oz (0.5 lb) / 0.227 kg
Source of data -- Collector info (Sammler)
Mentioned in - - Manufacturers Literature

Model page created by a member from A. See "Data change" for further contributors.
