All Transistor R-145B

All Transistor R-145B; Panasonic, (ID = 1684421) Radio

All Transistor R-145B; Panasonic, (ID = 1705163) Radio
All Transistor R-145B; Panasonic, (ID = 1603583) Radio All Transistor R-145B; Panasonic, (ID = 1603584) Radio
All Transistor R-145B; Panasonic, (ID = 1603585) Radio All Transistor R-145B; Panasonic, (ID = 1618073) Radio
All Transistor R-145B; Panasonic, (ID = 1618074) Radio All Transistor R-145B; Panasonic, (ID = 1618076) Radio
All Transistor R-145B; Panasonic, (ID = 1618077) Radio All Transistor R-145B; Panasonic, (ID = 1618078) Radio
All Transistor R-145B; Panasonic, (ID = 1618079) Radio All Transistor R-145B; Panasonic, (ID = 1618080) Radio
Use red slider bar for more.
All Transistor R-145B; Panasonic, (ID = 1603583) Radio

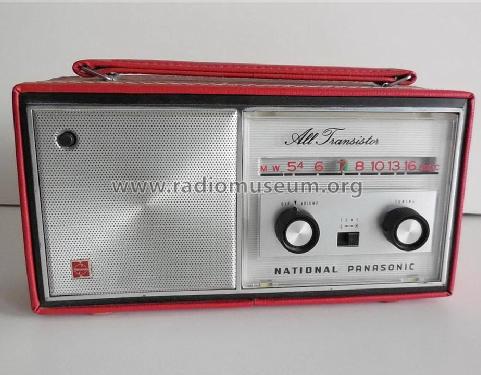

Panasonic,: All Transistor R-145B [Radio] ID = 1603583 845x476
Select picture or schematic to display from thumbnails on the right and click for download.
For model All Transistor R-145B, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1964 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2SA102 2SA101 2SA101 2SB171 2SB172 2SB172 OA90
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / AC 110-250 / AA: 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out 0.5 W (0.55 W max.)
from Radiomuseum.org Model: All Transistor R-145B - Panasonic, Matsushita,
Material Leather / canvas / plastic - over other material
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 196 x 100 x 65 mm / 7.7 x 3.9 x 2.6 inch
Notes

Mains supply range: 110 - 125,  220 - 250 V

Tone Selector Switch

Dial Light Switch

PCB Number:RUP 460

Net weight (2.2 lb = 1 kg) 0.9 kg / 1 lb 15.7 oz (1.982 lb)
Price in first year of sale 1'500.00 pte

Model page created by Manuel Albano Neves. See "Data change" for further contributors.
