• Year
  • 1966 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 107755

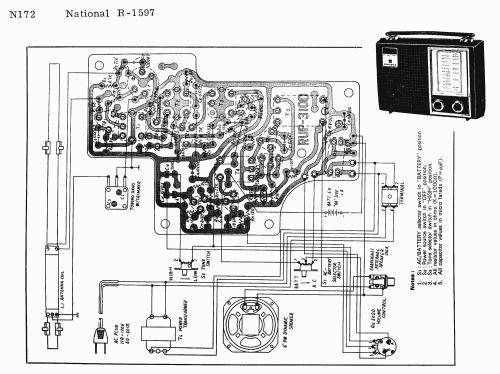

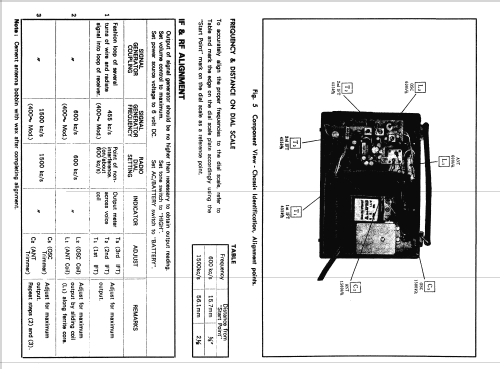

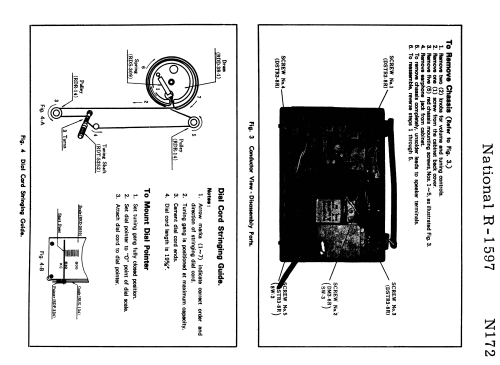

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Line / Batteries (any type) / 110-220 / AA: 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Panasonic 7 Transistor R-1597 - Panasonic, Matsushita,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 8 x 6 x 2.5 inch / 203 x 152 x 64 mm
  • Notes

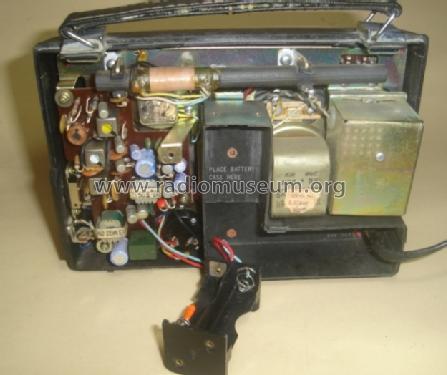

  • Panasonic R-1597, 7 Transistor, AC-Battery;
    Tone high/low switch, earphone jack, carrying handle.

    PCB Number: RUP-3100

    Frequency range: 525/1605 kHz

    Power consuption 2 W

  • Net weight (2.2 lb = 1 kg)
  • 0.650 kg / 1 lb 6.9 oz (1.432 lb)
  • Mentioned in
  • -- Collector info (Sammler)
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
