National Panasonic 2 Band 8 Transistor R-803H

National Panasonic 2 Band 8 Transistor R-803H; Panasonic, (ID = 1684443) Radio

National Panasonic 2 Band 8 Transistor R-803H; Panasonic, (ID = 1722091) Radio
National Panasonic 2 Band 8 Transistor R-803H; Panasonic, (ID = 774326) Radio National Panasonic 2 Band 8 Transistor R-803H; Panasonic, (ID = 774327) Radio

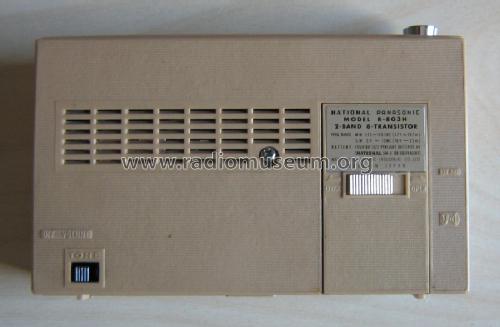

National Panasonic 2 Band 8 Transistor R-803H; Panasonic, (ID = 774328) Radio National Panasonic 2 Band 8 Transistor R-803H; Panasonic, (ID = 1097407) Radio
Use red slider bar for more.

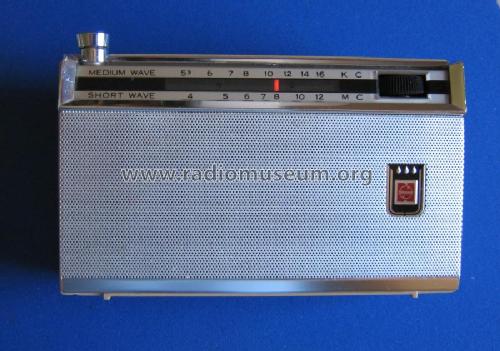

National Panasonic 2 Band 8 Transistor R-803H; Panasonic, (ID = 774326) Radio
Panasonic,: National Panasonic 2 Band 8 Transistor R-803H [Radio] ID = 774326 900x632
Select picture or schematic to display from thumbnails on the right and click for download.
For model National Panasonic 2 Band 8 Transistor R-803H, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1963/1964 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2SA70 2SA101 2SA101 2SB173 2SB171 2SB171 2SB172 2SB172 OA90 OA90
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / AA: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
Power out 0.18 W (0.3 W max.)
from Radiomuseum.org Model: National Panasonic 2 Band 8 Transistor R-803H - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 6.125 x 3.75 x 1.125 inch / 156 x 95 x 29 mm
Notes

National Model R-803

  Eight transistors, two diodes, two-band portable radio. Features tone switch with thermistor temperature compensation, jacks for earphone and/or external speaker, independent battery compartment allows easy replacement of batteries without disturbing internal circuit. rich volume and quality tone with NBF circuit. Plastic cabinet available in blue, brown or red colours.
  Specifications: frequency range: MW 525-1605 kC/s (kHz). SW 3.9 - 12 MC/s (MHz). Power output 300 mW. Speaker 2½" PM dynamic. 4 x UM-3 (AA Cells) penlight batteries.

This model sold in Australia during 1963 & 1964 for £34/13/-. Price and weight includes batteries.
See also Model R-803J with different SW frequency range & Japanese domestic Model R-803.

Net weight (2.2 lb = 1 kg) 1 lb 2 oz (1.125 lb) / 0.511 kg
Source of data - - Data from my own collection
Mentioned in Mingay's Radio Electrical Weekly Price Service (REWPS) (Aug 1963 to Aug 1964.)
Literature/Schematics (1) J.R. Publications Transistor Radio Service Handbook (Group C1, 1964, Page N97. [Also at KevinChant com])

Model page created by Felice Nicolini. See "Data change" for further contributors.
