• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1976 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 212898

• Number of Transistors
• 6

• Semiconductors
• 2SA102 2SA101 2SA101 2SC828 2SB22 2SD30 OA90

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (not changer)

• Power type and voltage
• Dry Batteries / D: 6 x 1.5 / DC: 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

• Power out
• 0.4 W (0.8 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

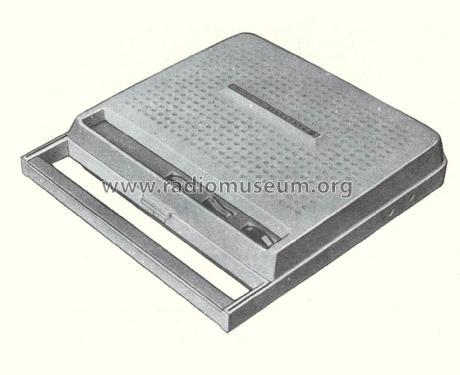

• Model: Radio Phonograph SG-354 - Panasonic, Matsushita,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 10.875 x 3.125 x 11.5 inch / 276 x 79 x 292 mm

• Notes
• Panasonic Portable Radio Phonograph Model SG-354.
  AM Radio, 2 Speed Turntable (33 and 45 rpm).
  Specially designed to play pocket-disc records.

• Literature/Schematics (1)
• -- Original-techn. papers. (Service Manual, No. SDT-518)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
