Radio Stereo Cassette Recorder 3 in 1 SG-740

Radio Stereo Cassette Recorder 3 in 1 SG-740; Panasonic, (ID = 2527974) Radio Radio Stereo Cassette Recorder 3 in 1 SG-740; Panasonic, (ID = 2529516) Radio
Radio Stereo Cassette Recorder 3 in 1 SG-740; Panasonic, (ID = 2529517) Radio Radio Stereo Cassette Recorder 3 in 1 SG-740; Panasonic, (ID = 2527975) Radio
Radio Stereo Cassette Recorder 3 in 1 SG-740; Panasonic, (ID = 2530150) Radio Radio Stereo Cassette Recorder 3 in 1 SG-740; Panasonic, (ID = 2530411) Radio
Radio Stereo Cassette Recorder 3 in 1 SG-740; Panasonic, (ID = 2530412) Radio
Use red slider bar for more.
Radio Stereo Cassette Recorder 3 in 1 SG-740; Panasonic, (ID = 2527974) Radio

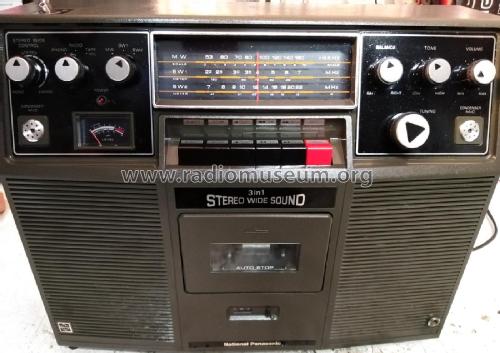

Panasonic,: Radio Stereo Cassette Recorder 3 in 1 SG-740 [Radio] ID = 2527974 1400x991
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radio Stereo Cassette Recorder 3 in 1 SG-740, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1974 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 22:
Main principle Superheterodyne (common)
Wave bands Broadcast plus 2 Short Wave bands.
Details Other Combination - see Notes
Power type and voltage Line / Batteries (any type) / AC: 100-115; 115-130; 200-225; 225-250 / D: 6 x 1.5 Volt
Loudspeaker 2 Loudspeakers / Ø 11 cm = 4.3 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Radio Stereo Cassette Recorder 3 in 1 SG-740 - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 360 x 285 x 160 mm / 14.2 x 11.2 x 6.3 inch
Notes

National Panasonic SG-740 is a boom-box with the following features:

  • radio receiver covering three wave bands:
    MW = 525 - 1605 kHz
    SW1 = 2.7 - 7 MHz
    SW2 = 7 - 22 MHz
  • cassette player with auto-stop function and mechanical tape counter
  • record player (see below)
  • two built-in condenser microphones
  • VU meter for tuning and battery levels
  • Stereo Wide Sound function
  • telescopic antenna

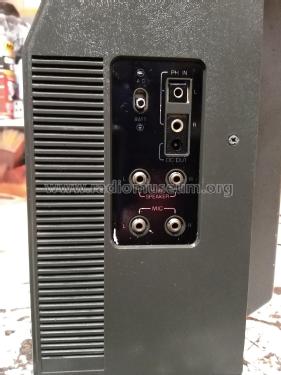

  • connectors for DC Out and Phono In L+R (record player)
  • connectors for Speaker Out L+R and Microphone In L+R

The set comes with dual speed turntable Stereo Player Unit SH-74, which is secured vertically at the back when not in use and doubles as back cover. It is connected to the DC Out and Phono In sockets by means of a combination plug.

A flat back cover with holders for 4 cassettes can be affixed instead when the record player is not needed.

See also model SG-740F with FM, MW and SW ranges.
Net weight (2.2 lb = 1 kg) 5.9 kg / 12 lb 15.9 oz (12.996 lb)

Model page created by Matthew Xenakis. See "Data change" for further contributors.
