RC-1103B

RC-1103B; Panasonic, (ID = 1190668) Radio RC-1103B; Panasonic, (ID = 1190669) Radio
RC-1103B; Panasonic, (ID = 1190670) Radio
Use red slider bar for more.

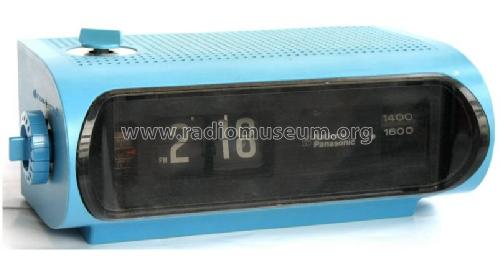

RC-1103B; Panasonic, (ID = 1190668) Radio
Panasonic,: RC-1103B [Radio] ID = 1190668 803x430
Select picture or schematic to display from thumbnails on the right and click for download.
For model RC-1103B, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1968 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: RC-1103B - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Source of data - - Data from my own collection

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
