RC-6030
Use red slider bar for more.

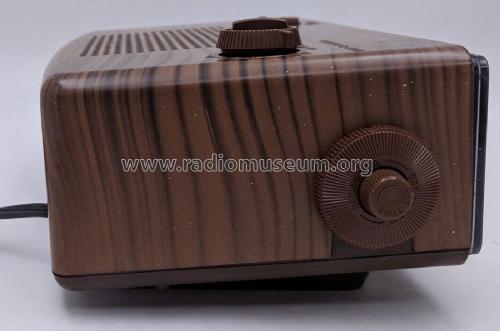

Panasonic,: RC-6030 [Radio] ID = 1416968 933x448
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1970 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. |
|---|
| Main principle | Superheterodyne (common); ZF/IF ? / 10700 kHz |
|---|---|
| Wave bands | Broadcast (BC) and FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 120 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: RC-6030 - Panasonic, Matsushita, |
| Material | Plastics (no bakelite or catalin) |
| Shape | Tablemodel with Clock ((Alarm-) Clock Radio). |
| Notes | Panasonic AM/FM Analog Clock Radio Model RC-6030. Flip Numbers, Wood Grain finish, Power consumption 5 watts. Made in Japan. |
Model page created by Franz Scharner. See "Data change" for further contributors.
