RE-30
Use red slider bar for more.

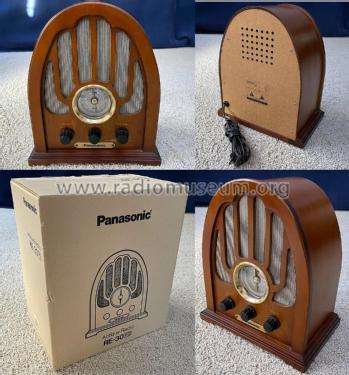

Panasonic,: RE-30 [Radio] ID = 2020461 1400x1750
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1989 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast (BC) and FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 60Hz, 120 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: RE-30 - Panasonic, Matsushita, |
| Material | Wooden case |
| Shape | Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only). |
| Dimensions (WHD) | 10 x 11.5 x 6.5 inch / 254 x 292 x 165 mm |
| Notes | The R-30 was a special limited production run of the model RE-30 radio that Panasonic was producing at the time. It is an AC powered AM/FM table radio in a wood cabinet that is a reproduction of an early style cathedral radio. The R-30 was presented to employees during 1989 as part of their celebrating 30 years of marketing in the US. MECA stands for Matsushita Electric Corporation of America which was founded in New York City in 1959. |
Model page created by Peter Janko. See "Data change" for further contributors.
