RE-6513
Use red slider bar for more.

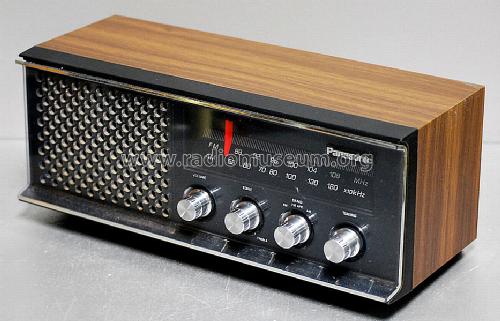

Panasonic,: RE-6513 [Radio] ID = 1194553 933x599
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1972 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast (BC) and FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 125 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: RE-6513 - Panasonic, Matsushita, |
| Material | Various materials |
| Shape | Tablemodel, with any shape - general. |
| Dimensions (WHD) | 13.5 x 4.5 x 4.88 inch / 343 x 114 x 124 mm |

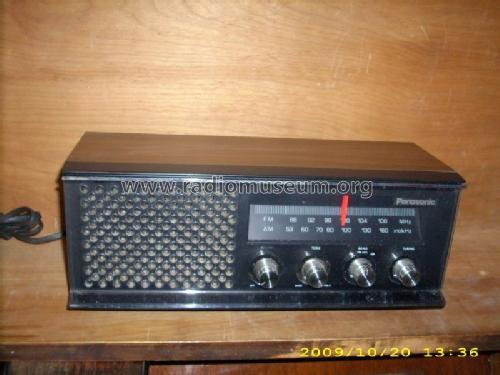

| Notes | Panasonic Table Top AM FM Radio Model RE-6513. FM-AFC, tone control. |
Model page created by Franz Scharner. See "Data change" for further contributors.
