• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 142216

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• 2SC429 2SC469 2SC185 2SC920 2SC469 2SC469 2SC183 2SB176 2SB473 2SB473 SC-15 1N34A 1S1211 1S1211 1N34A 1N34A 1N34A R-154B

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org

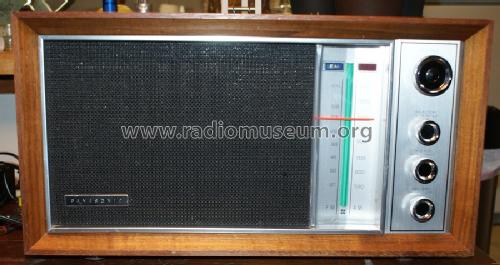

• Model: RE-7259 - Panasonic, Matsushita,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 17.3 x 9.35 x 5.8 inch / 439 x 237 x 147 mm

• Notes
• Panasonic RE-7259 FM-AM 2-Band;
  Tone control, screw terminals for ext. antenna, 11 W power consumption.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
