RE-7371

RE-7371; Panasonic, (ID = 986295) Radio RE-7371; Panasonic, (ID = 986292) Radio
RE-7371; Panasonic, (ID = 986293) Radio RE-7371; Panasonic, (ID = 986294) Radio
RE-7371; Panasonic, (ID = 986296) Radio RE-7371; Panasonic, (ID = 1241634) Radio
Use red slider bar for more.
RE-7371; Panasonic, (ID = 986295) Radio
Panasonic,: RE-7371 [Radio] ID = 986295 678x407
Select picture or schematic to display from thumbnails on the right and click for download.
For model RE-7371, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Ebay auction by user irishluck1010

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1970 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: RE-7371 - Panasonic, Matsushita,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 14.5 x 5.5 x 6 inch / 368 x 140 x 152 mm

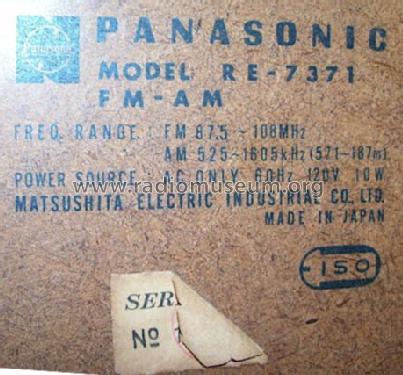

Notes Panasonic RE-7371 FM-AM;
FM: 87.5 - 108 MHz, AM: 525 - 1605 KHz,
terminals for ext. antenna in, 10 W power consumption, made in Japan.

Model page created by a member from A. See "Data change" for further contributors.
