RE-7860B

RE-7860B; Panasonic, (ID = 1780304) Radio RE-7860B; Panasonic, (ID = 1780305) Radio
RE-7860B; Panasonic, (ID = 1780308) Radio RE-7860B; Panasonic, (ID = 1780309) Radio
RE-7860B; Panasonic, (ID = 1780310) Radio RE-7860B; Panasonic, (ID = 1780312) Radio
RE-7860B; Panasonic, (ID = 1780313) Radio RE-7860B; Panasonic, (ID = 1780314) Radio
RE-7860B; Panasonic, (ID = 1780317) Radio RE-7860B; Panasonic, (ID = 1780321) Radio
Use red slider bar for more.

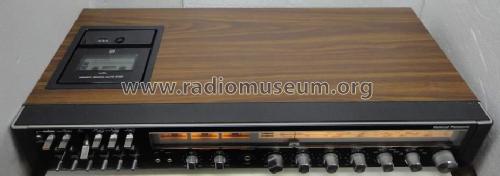

RE-7860B; Panasonic, (ID = 1780304) Radio
Panasonic,: RE-7860B [Radio] ID = 1780304 933x329
Select picture or schematic to display from thumbnails on the right and click for download.
For model RE-7860B, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1972 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present. unknown_tr STK439
Main principle Superheterodyne (common)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player; Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: RE-7860B - Panasonic, Matsushita,
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 620 x 100 x 300 mm / 24.4 x 3.9 x 11.8 inch
Notes

Lleva un Hibrido STK-439 Stereo Amplificador

Net weight (2.2 lb = 1 kg) 8.850 kg / 19 lb 7.9 oz (19.493 lb)

Model page created by Ignacio Rodriguez-Rodriguez. See "Data change" for further contributors.
