• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 309674

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; Super Regenerativ

• Tuned circuits
• 3 AM circuit(s)     5 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 1x 9V Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Power out
• 0.2 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: RF810 - Panasonic, Matsushita,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 71 x 112 x 34 mm / 2.8 x 4.4 x 1.3 inch

• Notes

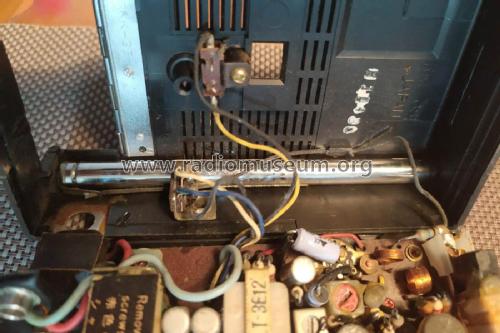

• Currently only the picture of the radio.

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Mentioned in
• -- Collector info (Sammler)

• Author
• Model page created by Wang Zhiwei (王志伟). See "Data change" for further contributors.
